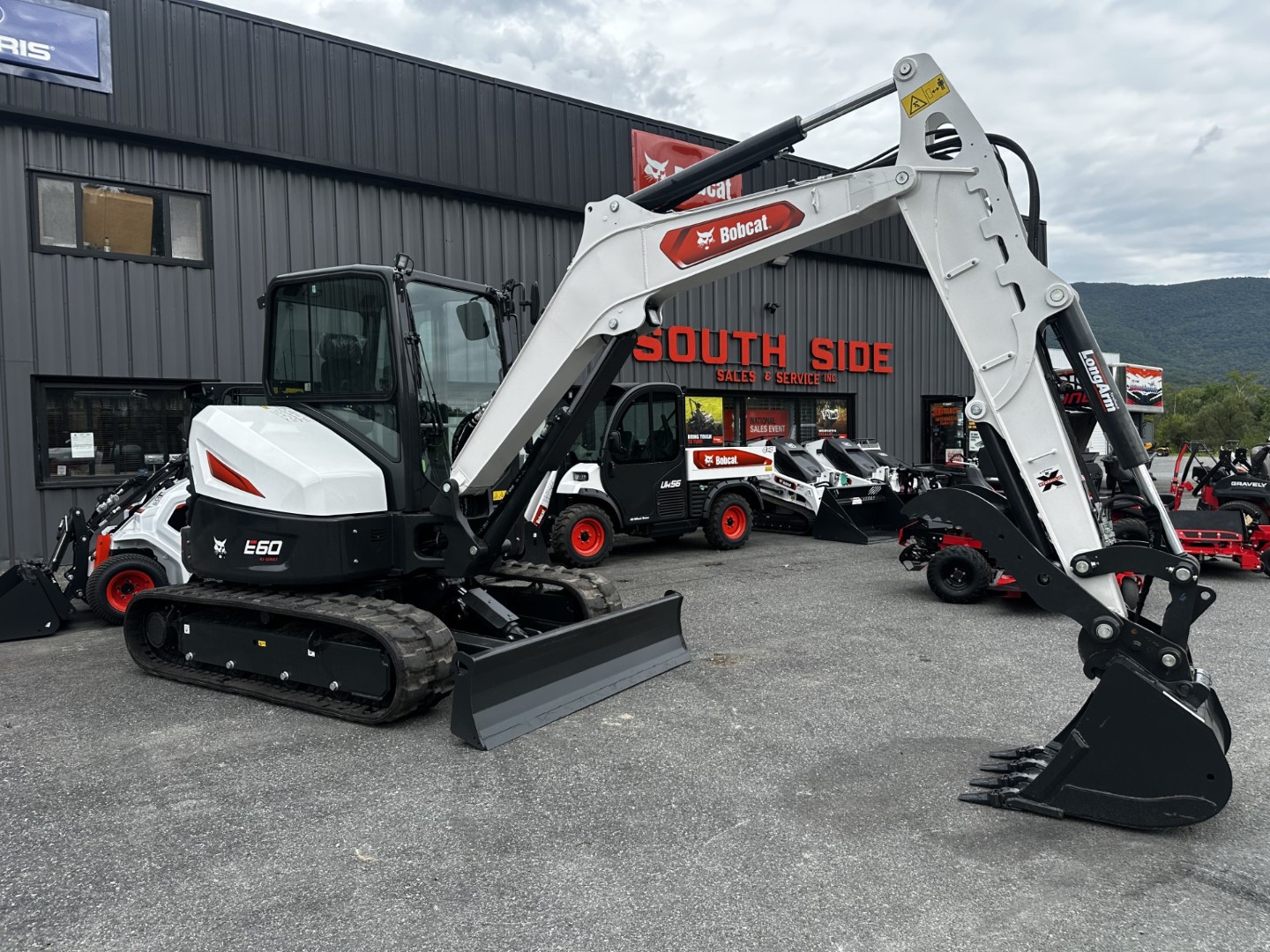

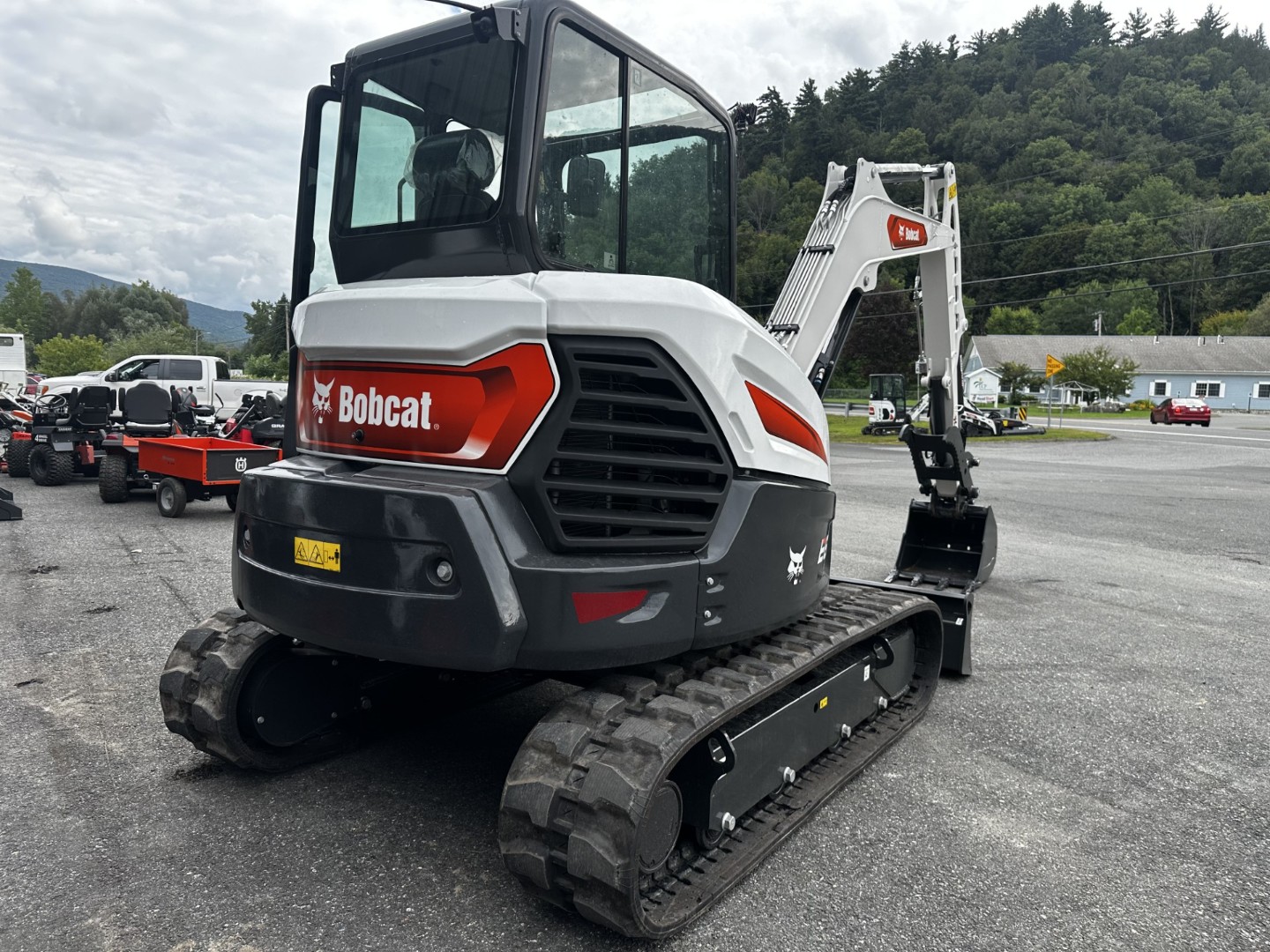

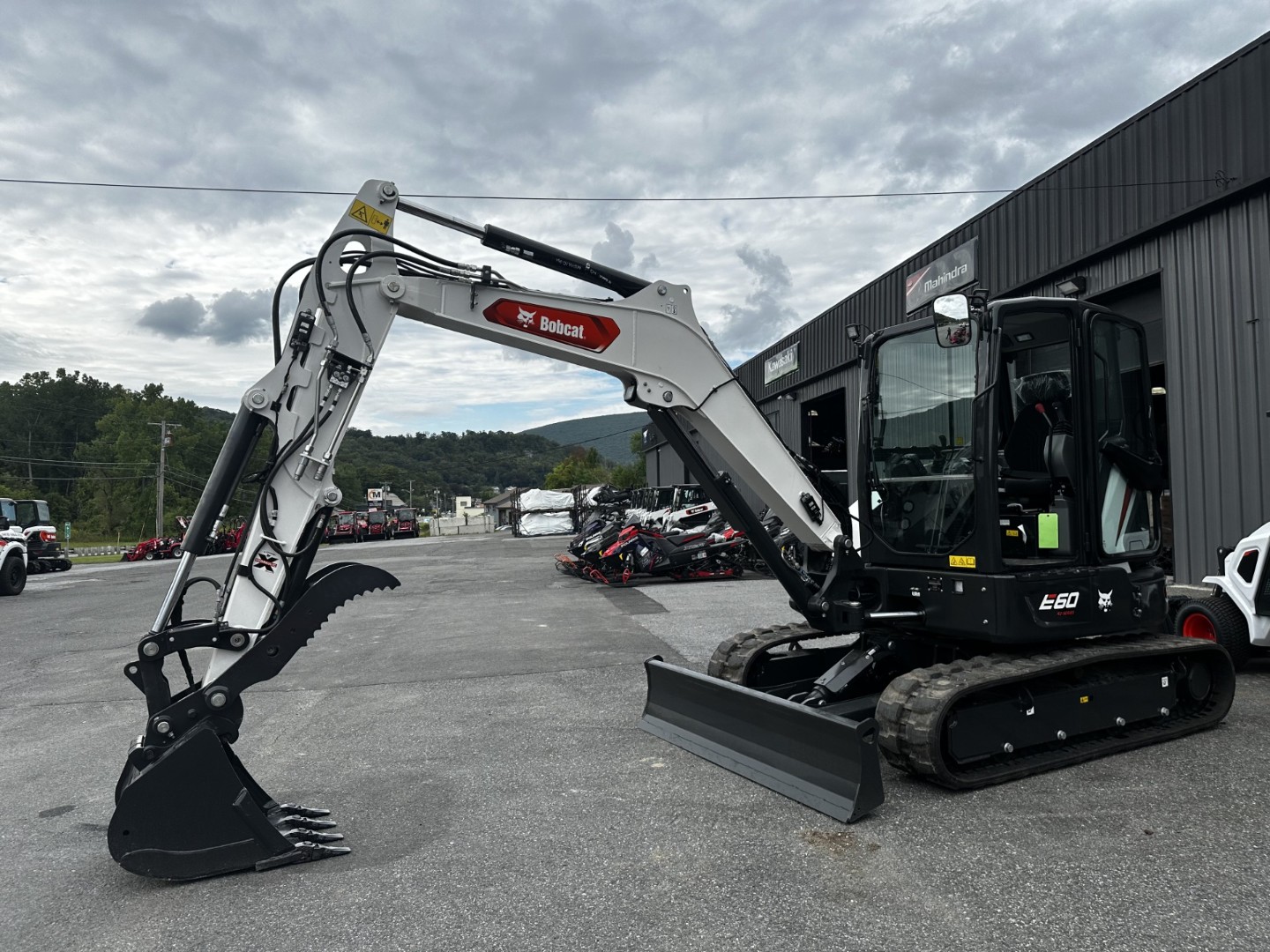

2026 Bobcat E60 Cab Deluxe Package / DEPTH CHECK # 9875
Machine build package

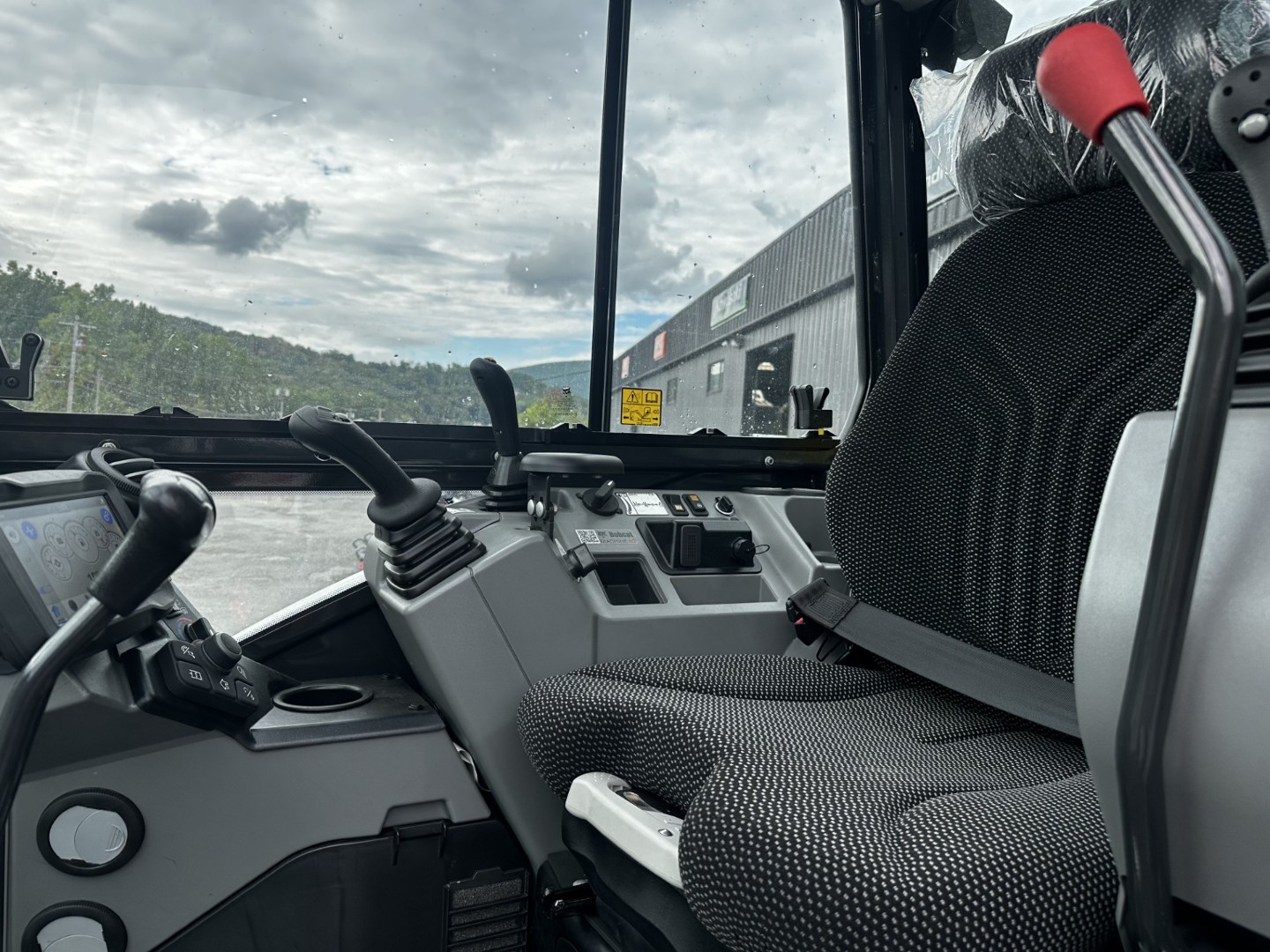

- Cab Deluxe Package: Enclosed Cab with Auto HVAC, Telematics with 3-year Machine IQ Health & Security Subscription, Keyless Start, Bobcat 7" Touch Display with Radio and Bluetooth, Heated High Back Cloth Suspension Seat, Travel Motion Alarm
- Depth Check - Long Arm, Standard Blade

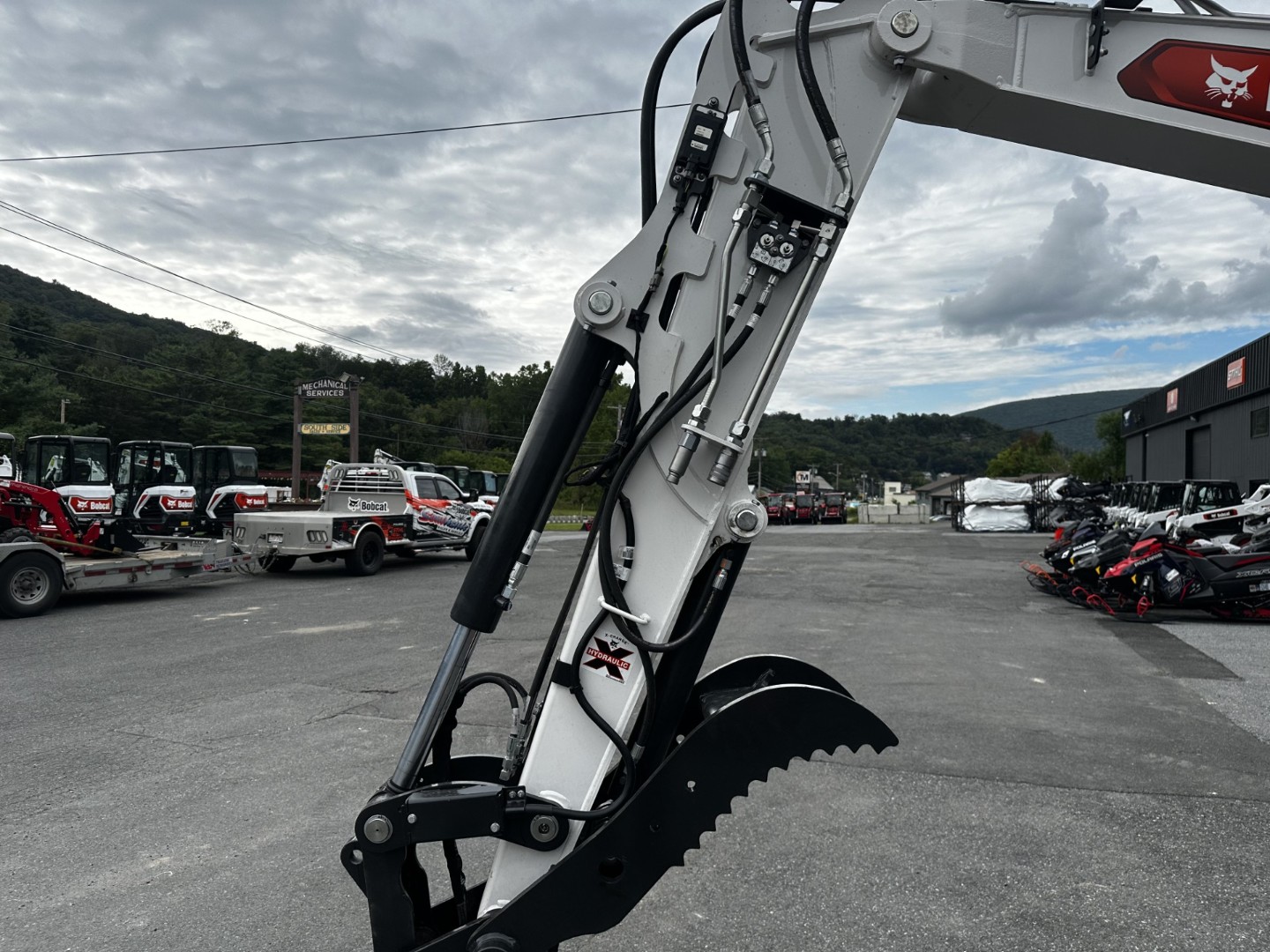

- Hydraulic Clamp - X-Change (Class IV/V) w/ Diverter Valve - Long Arm
- Hydraulic X-Change - Long Arm
- Long Arm + Additional Bolt-on Counterweight
- Rearview Camera
The conventional tail-swing E60 has it all – ample power, premium comfort features and proven performance. You’ll accomplish more and feel better doing it from a comfortable operator station with low noise and vibration, operator-friendly controls and excellent visibility.
- Maximized lift capacity and over-the-side digging
- Reduced and simplified routine maintenance
- Spacious cab with ergonomic controls
- Powerful, non-DPF engine
- This 6-ton mini excavator delivers maximum hydraulic and engine power to tackle challenging digs. Choose from a range of packages – from an open canopy to an enclosed cab with the latest technologies.
- You’ll spend more time in the cab and less time in the shop with a powerful Bobcat engine that’s designed to reduce and simplify routine maintenance.
- Available options include an extendable arm, advanced touch display, rearview camera and the exclusive Bobcat depth-check system.
Engine
| Configuration | E60 Long Arm | E60 Extendable Arm | E60 |
| Emissions Tier (EPA) | Tier 4 | ||
| Engine Fuel | Diesel | ||
| Maximum Governed RPM | 2,200 rpm | ||
| Turbocharged Engine | Yes | ||
Performance
| Operating Weight | 12,315 lb | 12,646 lb | 12,315 lb |
| Weight Class | 6 t | ||
| Travel Speed - High | 2.8 mph | ||
| Travel Speed - Low | 1.8 mph | ||
| Arm Digging Force | 6,446 lbf | 7,104 lbf | 6,446 lbf |
| Bucket Digging Force | 10,261 lbf | ||
| Rated Lift Capacity | 6411 lb | 6345 lb | 6411 lb |
| Lift Radius | 118 in | ||
| Boom Swing - Left | 75° | ||
| Boom Swing - Right | 50° | ||
| Maximum Dig Depth | 157.2 in | 177.6 in | 157.2 in |
| Max Dump Height | 171.6 in | 182.4 in | 171.6 in |
| Maximum Reach at Ground Level | 246 in | 265.2 in | 246 in |
Capacity
| Fuel Tank | 19 gal | 19 gal | 19 gal |
Hydraulic System
| Auxiliary Std Flow | 20 gal/min | 20 gal/min | 20 gal/min |
| Auxiliary Pressure | 3,045 psi | 3,045 psi | 3,045 psi |
Dimensions
| Length | 218.3 in | 218.3 in | 218.3 in |
| Overall Length in Travel Position | 218.3 in | ||
| Width | 77.2 in | ||
| Height | 100.1 in | ||
| Height with Operator Cab | 100.1 in | 100.1 in | 100.1 in |
Features
Air Conditioning
Optional
Cab Enclosure
Optional
Heater Air Conditioning
Optional
Radio
Optional
Tail Swing Type
Conventional
Engine Shutdown
Standard
Auxiliary Hydraulics
Standard
Secondary Auxiliary Hydraulics
Optional
Quick Tach System
Standard
Rubber Track
Standard
Selectable Auxiliary Hydraulic Flow
Standard
Angle Blade
Optional
